It is strongly recommended that a full-scale drawing is made of the bars, in particular for bends and stacking of bars. The contact area (sc) must be at least 5 times the cross-section of the bar (Sb). Devices to prevent loosening: Applying a mark (paint, brittle coating)will show any loosening and can also be used to check that tightening has been carried out correctly (tell-. Apart from pronounced oxidation(significant blackening or presence of copper carbonate or "verdigris"), bars do not require any special preparation. Cleaning with acidified water is prohibited, as, apart from the risks, it requires neutralisation and rinsing.

The main busbar of the high-voltage switchgear has a hole

In , a busbar (also bus bar) is a metallic strip or bar, typically housed inside,, and for local high current power distribution, transmission, or switching substations. Laminated, or sandwich, busbars use thin conductors with insulation between layers. Busbar design within Medium Voltage (MV) switchgear is a critical aspect, fundamentally ensuring the safe, reliable, and efficient operation of power systems. It connects the incoming power to circuit breakers and outgoing circuits, helping power flow smoothly and evenly. The use of busbar for switchgear goes back to the dawn of electricity generation and is very common in both residential load centers of 200A and less and in industrial motor control center (MCC) applications of more than 1200A.

How to measure the temperature of the busbar of a high-voltage switchgear

Non-contact infrared sensors continuously monitor busbar temperature from a safe distance within cabinets, avoiding physical contact or complex insulation requirements. Temperature monitoring in high-voltage busbar systems is vital for preventing faults, yet difficult due to electrical hazards, limited accessibility in switchgear cabinets, and interference risks in traditional contact-based methods. Temperature rise testing is one of the recommendations of IEC 61439; our system for monitoring switchgear and busbars is easily integrated with new installations or retrofitted to existing infrastructure. Busbar (copper row) lap surface is the "throat" part of the power transmission and distribution system, and its contact state directly determines the efficiency and safety of power transmission. In this paper, we analyze the micro-mechanism and evolution of busbar lap surface heating, and explain. Due to busbars conducting high currents, small rises in temperature can be indicative of faults.

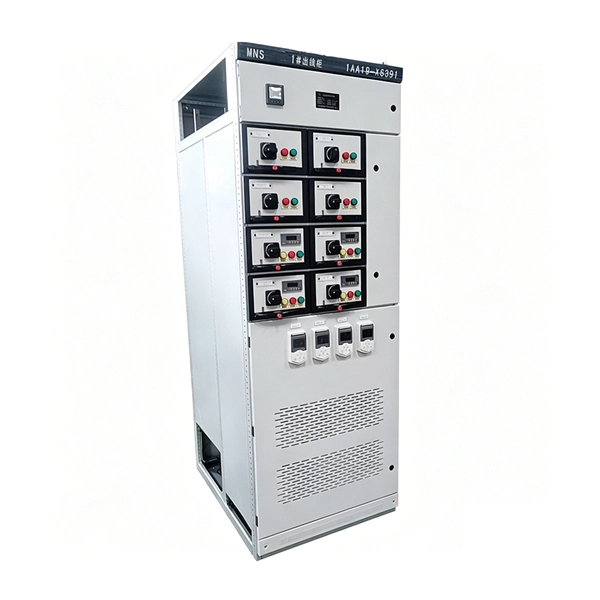

Addition of busbar to switchgear

Busbar design in switchgear ensures safe, reliable power distribution by balancing current capacity, thermal performance, mechanical strength, insulation, and standards compliance. A busbar is a metal bar, usually made of copper or aluminum, that carries electricity inside switchgear. Busbar can also be used as a common tapping point for multiple ground or neutral terminals. In most assemblies you will find horizontal main bars, vertical risers, neutral and equipment-ground buses, and purpose-designed. They connect the power source (such as the output terminal of a transformer) to various branches (such as the incoming terminals of circuit breakers), acting as a transfer station for electrical energy.

High-voltage switchgear early warning busbar

Non-contact infrared sensors continuously monitor busbar temperature from a safe distance within cabinets, avoiding physical contact or complex insulation requirements. Electrical failures are caused by a number of different factors, including: Continuous thermal monitoring technology enables critical MV switchgear joints and busbar connections to be monitored in real-time. Thermal monitoring locations include: Eaton Exertherm CTM solution for MV switchgear. Such fluctuations can eventually lead to insulation aging, poor contact, and even major fire. Busbars have typically been left without dedicated protection, from the following reasons: It is a fact that the risk of a short circuit happening on modern metal clad equipment is insignificant, but it cannot be completely dismissed. High-impedance voltage differential protection is a solution to the challenge of CT saturation during external faults, as the high impedance of the relay forces the error current due to the saturated CT back through the CTs instead of the relay operating coil.
