PATCH PANELS EXPLAINED TYPES BENEFITS AND HOW THEY WORK

What other types of patch panels are there besides ODF and DDF

Generally speaking, patch panels can be divided into three types based on the cables used, namely Ethernet patch panels, fiber patch panels, and coaxial patch panels. This 2026 expert guide explains the functions, placement, structure, and application scenarios of ODFs and fiber patch panels-and includes a deep engineering FAQ that resolves real-world deployment challenges. It is important to know the location of the installation as it will directly lead you to the type of patch panel needed. A fibre patch panel is a fundamental component of any structured fibre optic network, providing a central point for managing, organising, and distributing fibre connections. Conversely, ODFs not only connect and manage but also protect the core, pigtail of.

What type of pigtail is used in fiber optic patch panels

A fiber optic pigtail is a short optical fiber cable that has a connector on one end and an exposed (unterminated) fiber on the other. The connector end plugs into devices like transceivers or patch panels, while the bare end is typically fusion spliced to a fiber optic cable. The connector end is polished and tested under factory conditions, ensuring low insertion loss and high return loss. Compared with quick termination or epoxy and polish connections placed on the field.

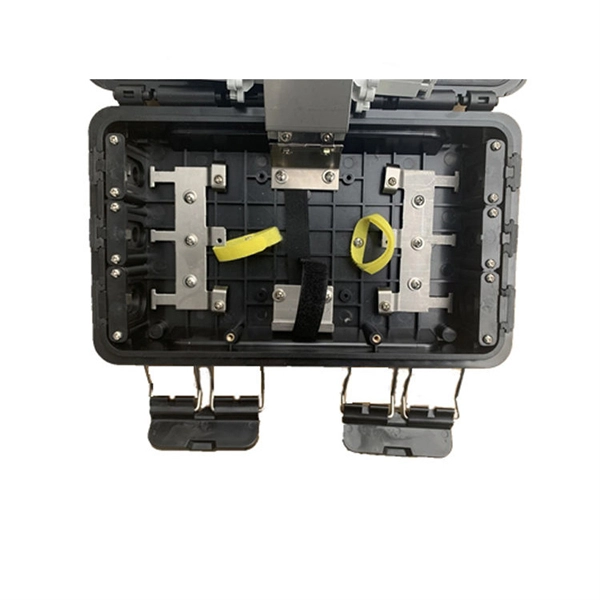

How to connect a dual fiber optic patch cord

The ideal structure for connecting two fiber cables is as follows: Cable A → Adapter Panel → Patch Cord → Adapter Panel → Cable B How It Works Fiber Adapters: Bridge the two connector types (e. The safest and most standardized way to connect two terminated fibers inside a cabinet is by using patch cords and adapters. This approach maintains network performance while allowing flexible reconfiguration. Connecting a fiber optic patch panel may seem daunting at first, but if you follow the right steps, it's actually quite simple – and can even be done in just a few minutes. Network engineers often install these adapters in patch panels, cassettes, or wall enclosures.

Optical cables are distributed via patch panels

A fiber patch panel is a mounted enclosure—either rack-mounted or wall-mounted—used to terminate, manage, and interconnect multiple fiber optic cables. It acts as a hub for organizing splices and patch cords, streamlining fiber management and preserving signal integrity. The Optical Distribution Frame as the central nervous system or the primary distribution hub for your outside plant (OSP) fiber optic cables entering a building or a major facility (like a Central Office, Data Center Meet-Me-Room, or Cell Tower Shelter). A bulk (multi-strand) fiber cable enters the patch panel and then each fiber strand is separated into individual strands or pairs of strands. With the rise of high-density data centers and FTTH systems, traditional ODF designs are being complemented by MPO/MTP-based fiber patch panels. This guide will focus on elucidating the aspects of the fiber patch panel, its accessories, the work done with such a device, and how to.

Standards for Fiber Optic Interface Requirements for Patch Panels

This guarantees interoperability with standardized connectors and maintains acceptable insertion loss parameters. 3‑E "Optical Fiber Cabling and Components Standard" was developed by the TIA TR‑42. During cable installation at patch panels, installers need to achieve conformity to the National Electrical Code (NEC). le with ITU-T G 652 D standard Op rconnecting Devices (TIA/EIA 604-2, 604-3, 604-4, 604-5, 604-10, 604-12).
